GES 50 Mk III Freefall Lifeboat System

Totally Enclosed Free Fall Lifeboat designed and manufactured according to latest SOLAS Classification Society and National Authority requirements.

The lifeboat provides a secure and protected means of escape for persons onboard vessels or platforms. The lifeboat is for skid launch by a specific davit. Design and construction fulfill the need for reliable, low maintenance standby and operation.

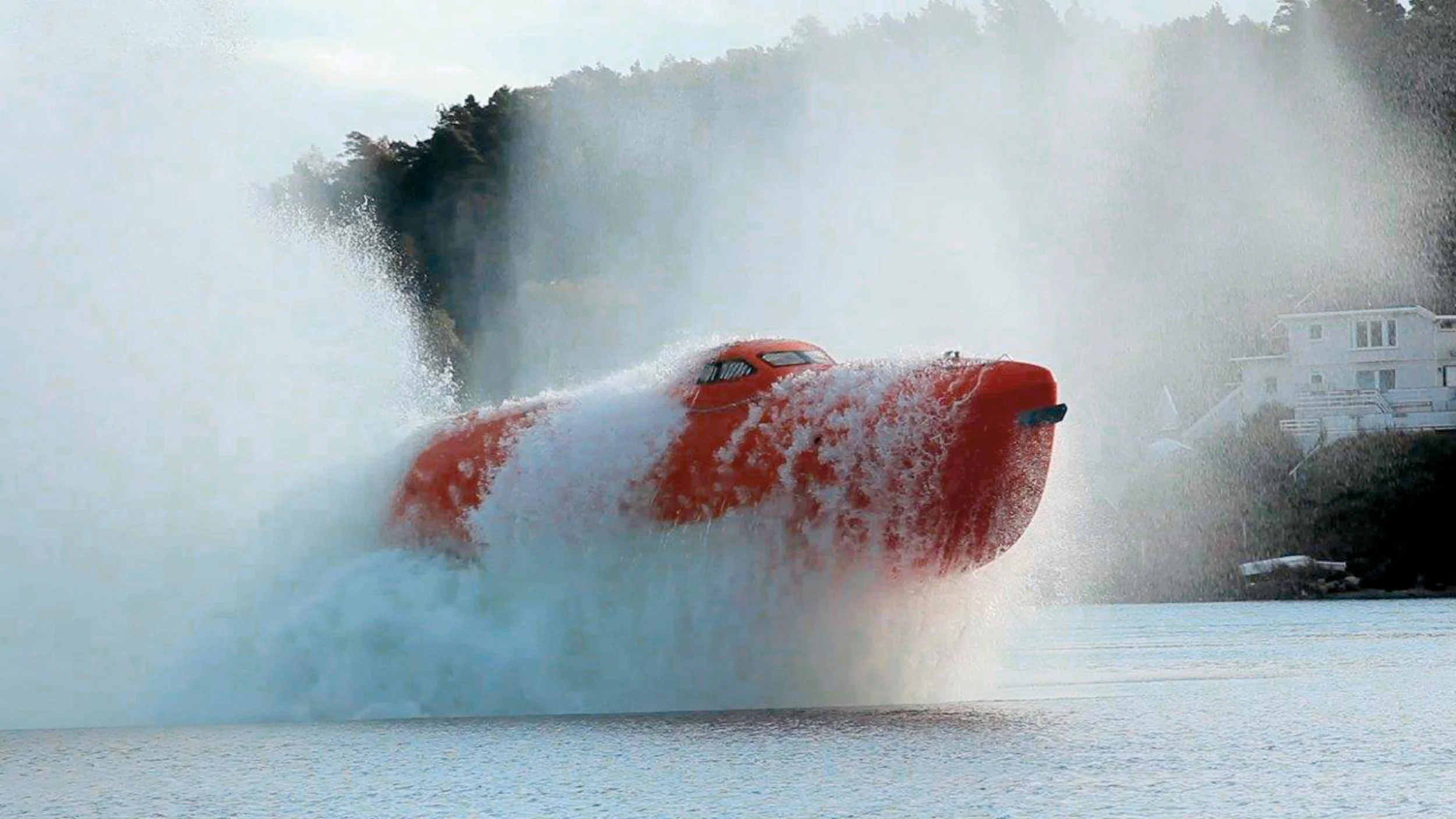

The GES 50 free fall lifeboat is designed for launch from a hydraulic ramp. This ensures that the boat enters the water a safe distance from the installation, with significant forward motion.
Boarding is through an aft door, with easy access to the seats on either side of the central aisle.
All equipment is designed to ensure the lowest possible emission of sound and to provide good access for service and maintenance.

Technical Data:

GA drawing for GES 50MKIII freefall boat in HD50 davit ship type, click here.

GA drawing for GES 50MKIII freefall boat in HD50 davit rig type, TBA.

GA drawing for GES 50MKIII freefall boat in SW50 davit, click here.

GA drawing for GES 50MKIII freefall boat in SW50 interconnected davit, TBA.

Length overall:  14,90 m

Beam:  3,75 m

Height:  4,50 m

Capacity maximum:  70 persons

Weight boat with equipment:  19.500 kg

Davit load with persons:  26.500 kg

Max. Drop Height:  50m

Material:GRP

Additional: Tanker version available for tank ships and oil installations.

Typical specification - subject to revision according to customer requirement.
All products are subject to continuous review. Norsafe as reserves the right to change specification without prior notice.
