AIR COMPRESSORS
HIPAQ A/S is known for supplying high-quality, bespoke turnkey solutions for offshore oil & gas, marine and industrial applications worldwide.
HIPAQ A/S benefits from more than 30 years of experience as designers and manufacturers of customized high pressure pumping and air compressor systems.

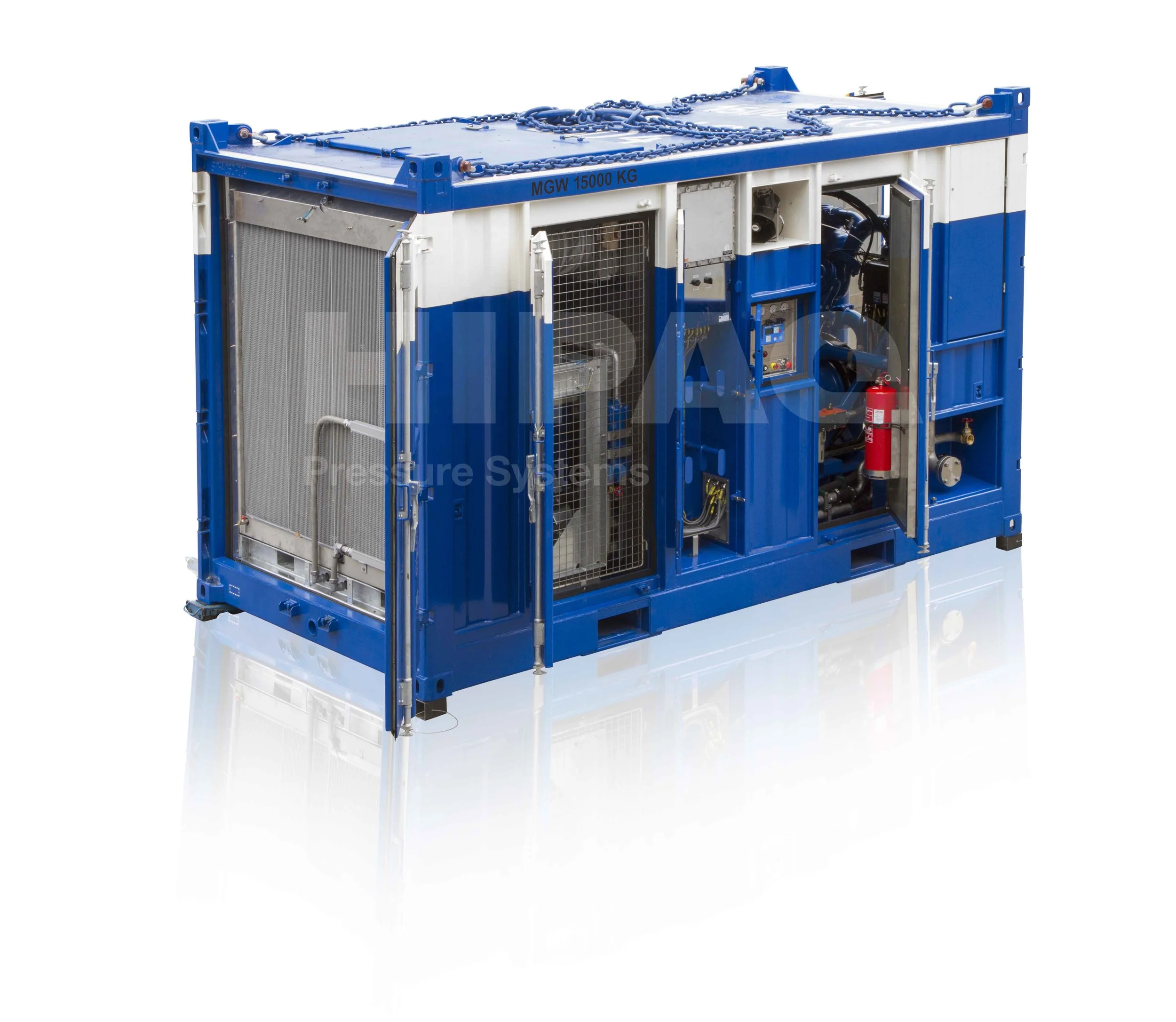

DIESEL ZONE 2 AIR COMPRESSOR
Diesel driven Zone 2 Air Compressor system, designed for topside use in hazardous areas.
The compressor module is designed and approved according to ATEX, IECEx, DNV 2.7-2 and NORSOK Z-015 for operation worldwide.
Built for low noise emission, and fully equipped with approved firefighting system, along with gas detection system 3G SAFE, which minimizes downtime and eliminates the need for exhaust flame traps.
User-friendly control system, which includes all operation parameters.
Compressor type: Oil Flooded Screw
Ambient temp.: -20 to +45 C
Pressure: 10 bar (150 psi)
Flow: 20-50 m3/min (700-1,765 SCFM)
Engine power: up to 550 kW
Speed: 1800 rpm
EX approval: Zone 2, 3G IIB T3
Noise level: 83 dB(A)
Coolant: Air
Size: 5.0 x 2.45 x 2.9 m
ELECTRIC ZONE 2 AIR COMPRESSOR
Electrically driven air compressor, designed as a portable offshore unit. The unit is suited for operation within a very wide temperature range, and noise emission will stay low, even at the highest ambient temperatures.
The compressor module is designed and approved according to ATEX, IECEx, DNV 2.7-2 and NORSOK Z-015, for operation worldwide. This machine offers a unique combination of size vs. capacity!
Compressor type: Oil- ooded screw
Ambient temp.: -20 to +45 °C
Pressure: 10 bar (150 psi)
Flow: 10-30 m3/min (350-1,500 SCFM)
Engine power: 75-225 kW
Speed: 1170 rpm
EX approval: Zone 2, 3G IIB T3
Noise level: 80 dB(A)
Coolant: Air
Size: 3.5 x 1.9 x 2.5 m
