Wash Down Systems
HIPAQ A/S is known for supplying high quality, bespoke turnkey solutions for offshore oil & gas, marine and industrial applications worldwide.
HIPAQ A/S bene ts from more than 30 years of experience as designers and manufacturers of customized high pressure pumping- and air compressor systems.
Wash Down Systems are available in either a standard model, or Explosion Proof versions.

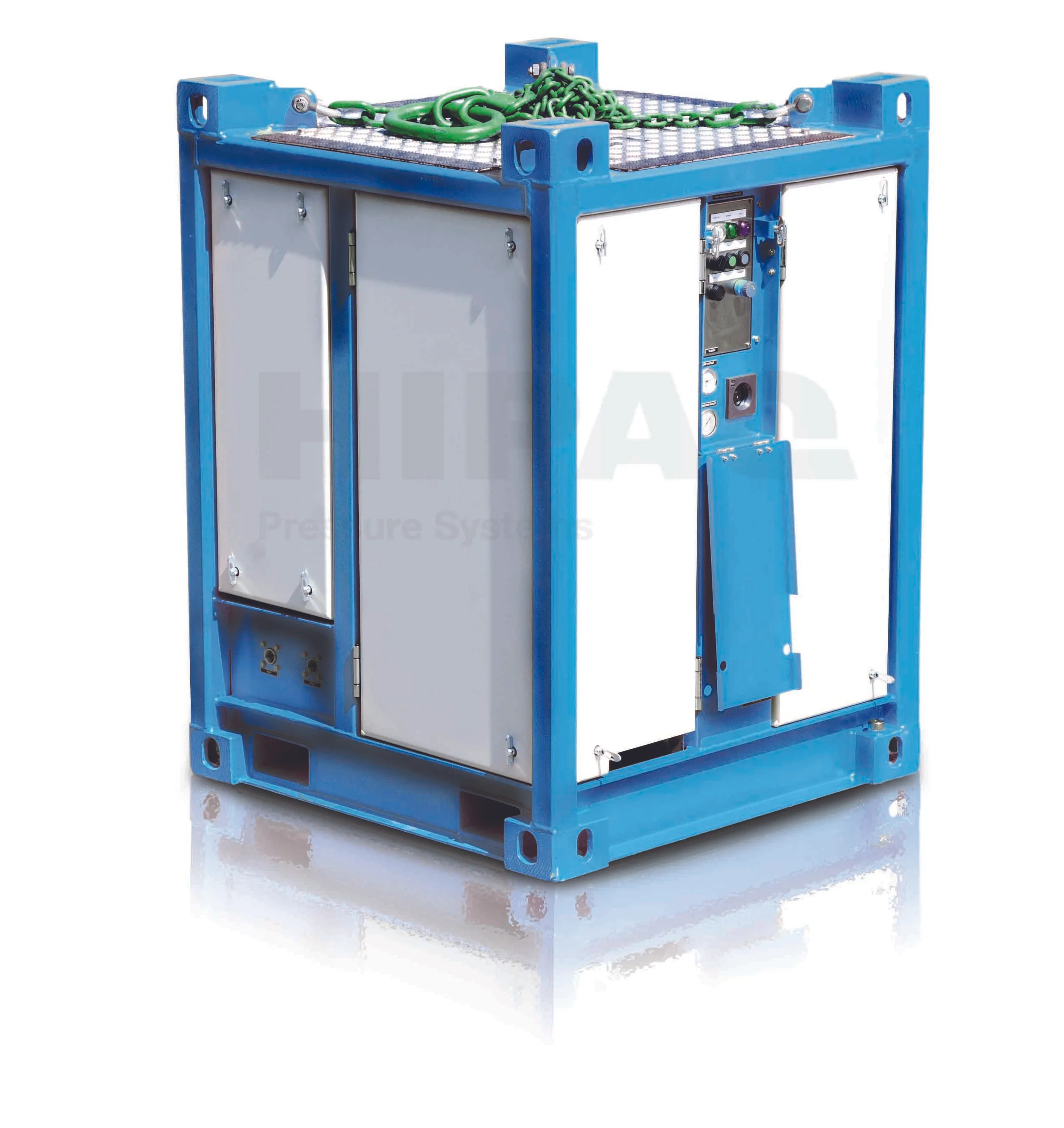

Explosion Proof Wash Down System
Explosion proof designed high pressure wash down system. Includes integration of heated water tank and high pressure hose reel with gun and lance.
The system is designed for stacking, in order to minimize the use of deck space.
The system is designed according to all major oil and gas standards and furthermore has low noise emmision due to the closed design.
The machine is designed for easy maintenance as all panels can be opened for service.
Pump type: Triplex Plunger
Ambient temp.: -20 to +45C
Pressure: 50-400 bar
Flow: 10-60 L/min
Power: 15kW max
Heater: 65C
Voltage: 400, 440, 480, 660, 690
EX Approval: Zone 1 or 2
Standards: NORSOK, API, DNV, etc.
Frame approval: DNV 2.7-1
Size: 1.2 x 1.2 x 1.8 m

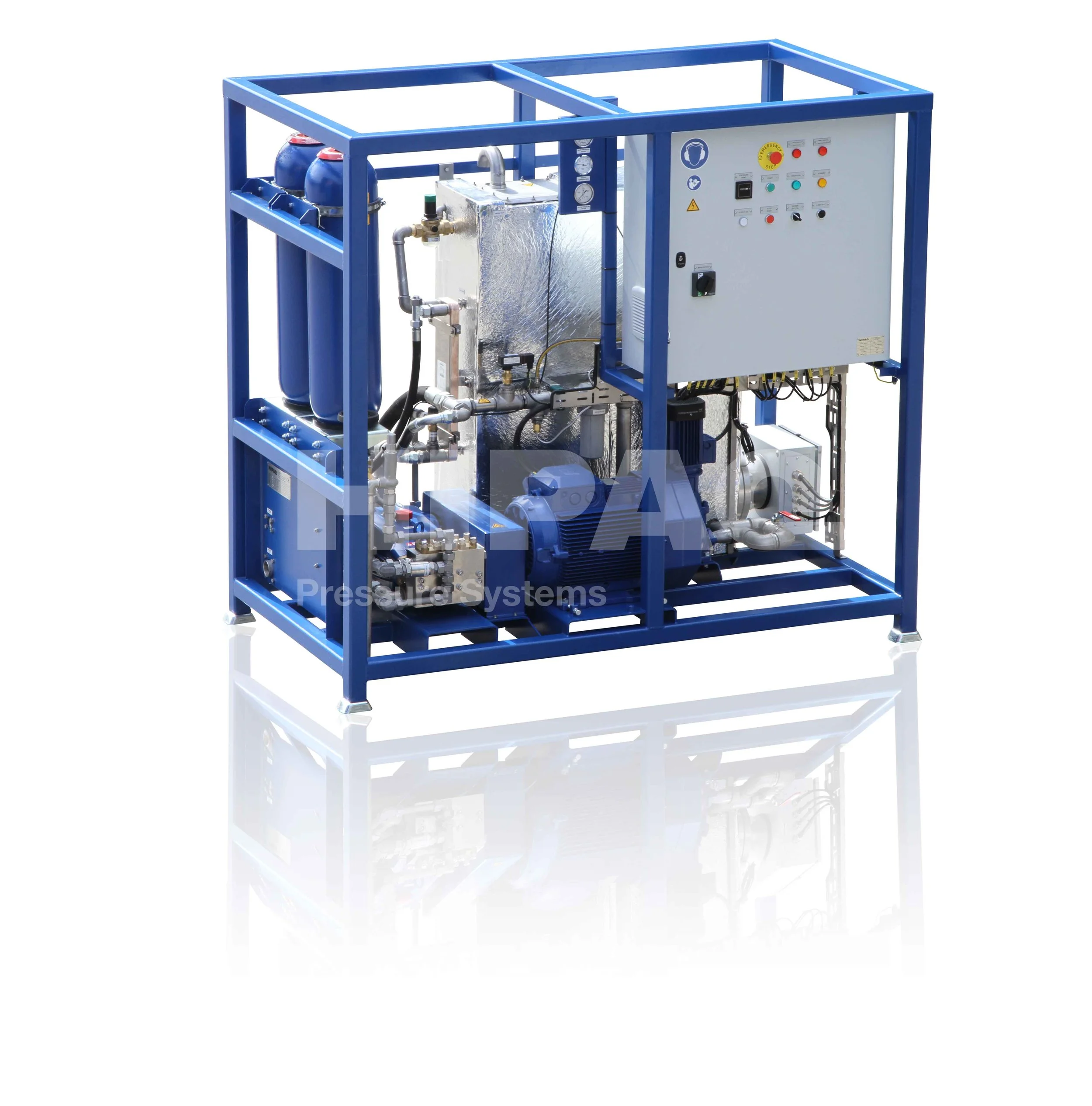

Non-EX Wash Down System
Central High Pressure Cleaning System for offshore oil & gas and commercial vessels. Customized, flexible solutions.
The systems can be supplied as standard framed or containerized according to DNV 2.7-1, 2.7-2 or 2.7-3. One pump or multiple pump systems. Electrically driven. Pressure regulator for pressure adjustment from 0 bar to max. pressure. Complete control system. One user or simultaneous users. Small footprint and low weight.
Easy installation and maintenance. Approval according to all major classi cation societies.
Pump type: Triplex Plunger
Ambient temp.: +5 to +45C
Pressure: 50-400 bar
Flow: 10-100 L/min
Power: 5-50 kW
Media: Hot or Cold Water
Tank with heater: Optional
Standards: NORSOK, API, DNV, etc.
Control: Automatic Start/Stop
Size: 1.9 x 1.0 x 1.1 m
